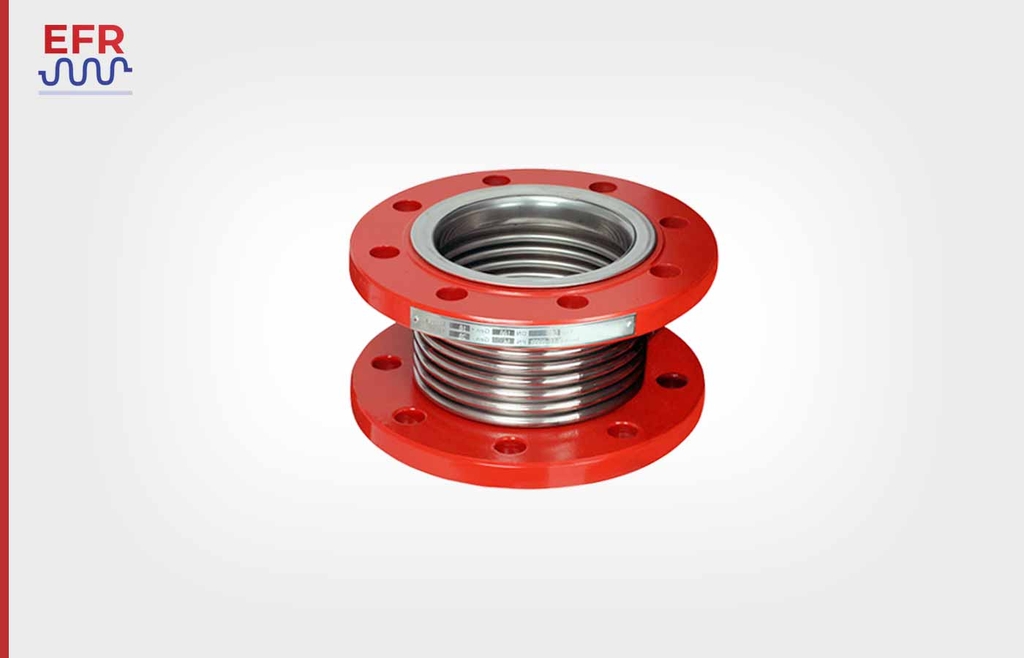

Axial Expansion Joint Stainless Steel

Liên hệ
Còn hàng

Brand: EFR

Model: EES Series

Expansion: -20mm / + 10mm, -40mm / + 20mm

Body material: stainless steel aisi 304 type double-ply

Flange material: steel or stainless steel

Connection type:

Connecting flange jis-10k / 20k

Connection of din-16/25/40 flange

Connect ANSI # 150 / # 300 flange

Solder connection: sW or bW

In piping systems, it is  almost imperative to equip Axial Expansion Joint Stainless Steel, axial movement expansion joint to protect the pipes from damage caused by thermal expansion and to minimize vibrations. With the Axial Expansion Joint Stainless Steel EFR, we would like to present to you a special line of thermal expansion couplings, the first choice for quality and many other advantages.

Axial expansion joint stainless steel, axial bellows expansion joints, axial compensator expansion joint, axial movement expansion joint, metal axial expansion joint.

Axial Expansion Joint Stainless Steel EFR is a quality product line produced by E-Flex Vietnam on request and distributed nationwide. We have a mission to create true "Pipe Protector" products, protecting your pipes during use.

Stainless steel thermal expansion joints, stainless steel heat expansion pipes

Axial Expansion Joint Stainless Steel EFR, in  addition to the function of eliminating expansion and vibration, protects the pipeline, also provides high pressure and temperature resistance, and safety of fire. Due to the stainless steel material, it is suitable for installation and long-term use, with high corrosion resistance, reducing maintenance and replacement costs.

The product is highly regarded by the market for meeting most of the specifications and certification requirements needed for use in both residential piping systems and large industrial projects.

Axial expansion joint stainless steel, axial bellows expansion joints, axial compensator expansion joint, axial movement expansion joint, metal axial expansion joint.

To choose the right axial expansion joint for the specific use of each different application. First, customers must determine some basic specifications in order to choose the right stainless steel thermal expansion tube for the application.

It includes: expansion amplitude, connection type, solvent used, temperature used, delivery time & quality of packaging.



PRODUCT ADVANTAGES:

❖ Meet a wide selection of pipe sizes (more than 10 sizes from DN25 and above).

❖ Perfectly suitable for many mounting positions (see details below).

❖ Super wide working temperature range: -80 / + 427 ° C.

❖ Wide SEEDING amplitude (mm): -20 / + 10; -40 / + 20.



COMMITMENT TO QUALITY:

❖ 100% of imported stainless steel pipes: AISI 304.

❖ 100% tested before factory (pneumatic or hydraulic).



FULLY FIT FOR PIPE ROUTES:

HVAC piping

Water supply & treatment pipeline

Chemical pipeline

Pipeline for food & beverage

Gas pipeline

Hot steam & hot water pipes

Power & energy production plant

And industrial plumbing applications.



CONNECTION TYPES:

Fixed type flange connection

Connection of swivel type flange

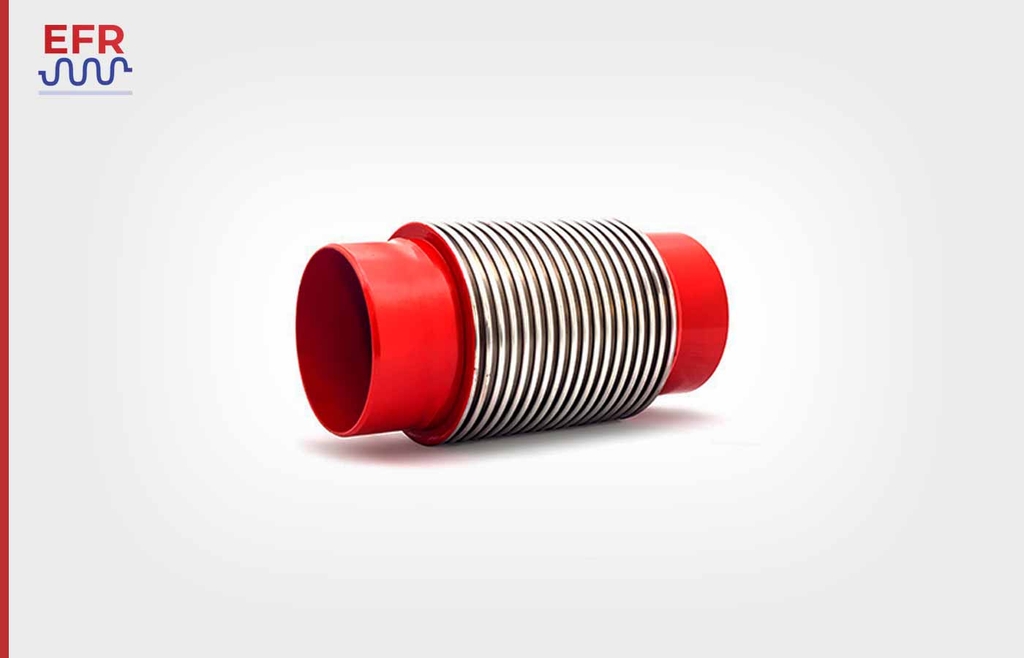

Welding type

Standard: JIS, PN, ANSI

Sizes: From DN25 and up (Please see size chart).



MATERIAL:

Flexible pipe: Stainless steel AISI 304/321, AISI 316

Connecting accessories: Stainless steel, Steel, Iron or other materials.



SIZES & PARAMETERS:

Axial Expansion Joint Stainless Steel



ORDERING GUIDE:

Products are supplied in sizes and lengths indicated in the size chart. However, you can still make some separate requirements.

There are 2 simple steps to order at E-Flex:

Step 1: Choose a suitable tube size for reality.

Step 2: Choose the right flange connection type.

Step 4: Submit your E-Flex Vietnam selection and request separately.



CATALOGUE & INSTALLATION INSTRUCTIONS

 See Catalgue Products

See Installation Instructions
